Sculpfun SF-A9 40W Laser Engraver Cutting Machine With Precise Positioning Flame Temperature Alarm Function 400x400mm Working Area
Sculpfun SF-A9 40W Laser Engraver Cutting Machine With Precise Positioning Flame Temperature Alarm Function 400x400mm Working Area
Main Feature:
1. 40W Powerful Laser: Sculpfun SF-A9 adopts the 40W laser head with a strong cutting ability, and supports the 40W/20W laser power switching, which can cut 20mm plywood and 6mm dark acrylic at one pass time. It uses the heat pipe radiator to provide a faster and more balanced heat dissipation performance.
2. Safety Protection Design: Built with a tilt sensor, it will set off an alarm and stop emitting the laser light while the machine body is off-balance and tilts over 15°. It is also equipped with the functions of emergency stop and child safety lock switches, flame and temperature sensors. When it detects the flames during the working process, the flame and temperature sensors will be triggered and the machine will stop working with an alarm while automatically moves to the safest location.
3. High Speed Up to 36000mm/min: The SF-A9 laser engraving machine supports the high speed engraving mode with a faster working speed of up to 36000mm/min as well as a stable machine body to bring a perfect engraving effect. And it supports precision mode to cut more accurately for a better components assembly.
4. Precise Focusing Design: Designed with a most precise focusing, the focus lever on the laser head is stable that enables the focusing position more accurate. The red knob on the right side of the laser is to raise or lower the laser module for the quick height positioning according to the material's thickness, and the knob on the top of the laser is for the precise adjustment.
5. Sturdy and Easy Installation: Full metal structure design makes the machine robust. The levelling structure of the metal support pillar and the industrial-grade linear guide rail of the X-axis provide more stability to the machine, which increases the engraving motion accuracy to 0.01mm. Y-axis utilizes adaptive wheels to provide a more smooth motion. Easy installation in one step to complete the entire assembly.
6. Adjustable Machine Height: The Sculpfun SF-A9 comes with the additional metal support pillars that can adjust the height of the machine to facilitate the engraving of higher objects, meeting a variety of working needs.
7. Multiple Connection Methods: Supports WiFi, USB and BT function. It can be compatible with the Sculpfun mobile phone APP or the computer software like LightBurn and LaserGRBL.
8. Automatic Air Assist: Upgraded large inner diameter air pipe with a better air channel design that can present a more cleaner cutting effect and improve the service life of the laser lens.
Product Model: Sculpfun SF-A9
Flame Alarm: 60℃ trigger
Tilt Sensor: 15° trigger
BT: 4.2
Wi-Fi:2.4Ghz
Wavelength: 450nm±5nm
Working Area: 400*400mm
Laser Module Power: 40W
Laser Spot: Adjustable:0.1mm/0.15mm
Working Speed:MAX.36000mm/min
Working Voltage: DC24V
Working Current: 10A
Input Power: 240W
Support System: Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux
Material for Engraving:Cardboard,MDF,Felt, Cardboard, Wood, Bamboo, Leather, Fabric,Dark Acrylic, Brushed Stainless Steel, Dark Anodized Aluminum, Painted Metal, etc
Material for Cutting: Cardboard,MDF,Felt, Cardboard, Wood,Bamboo, Leather, Fabric, Dark Acrylic, etc.
Operation Application Software:
Computer: LightBurn/LaserGRBL
Mobile Phone: Sculpfun APP
Product Package Weight: 11.2KG
Product Package Size: 715*665*150mm

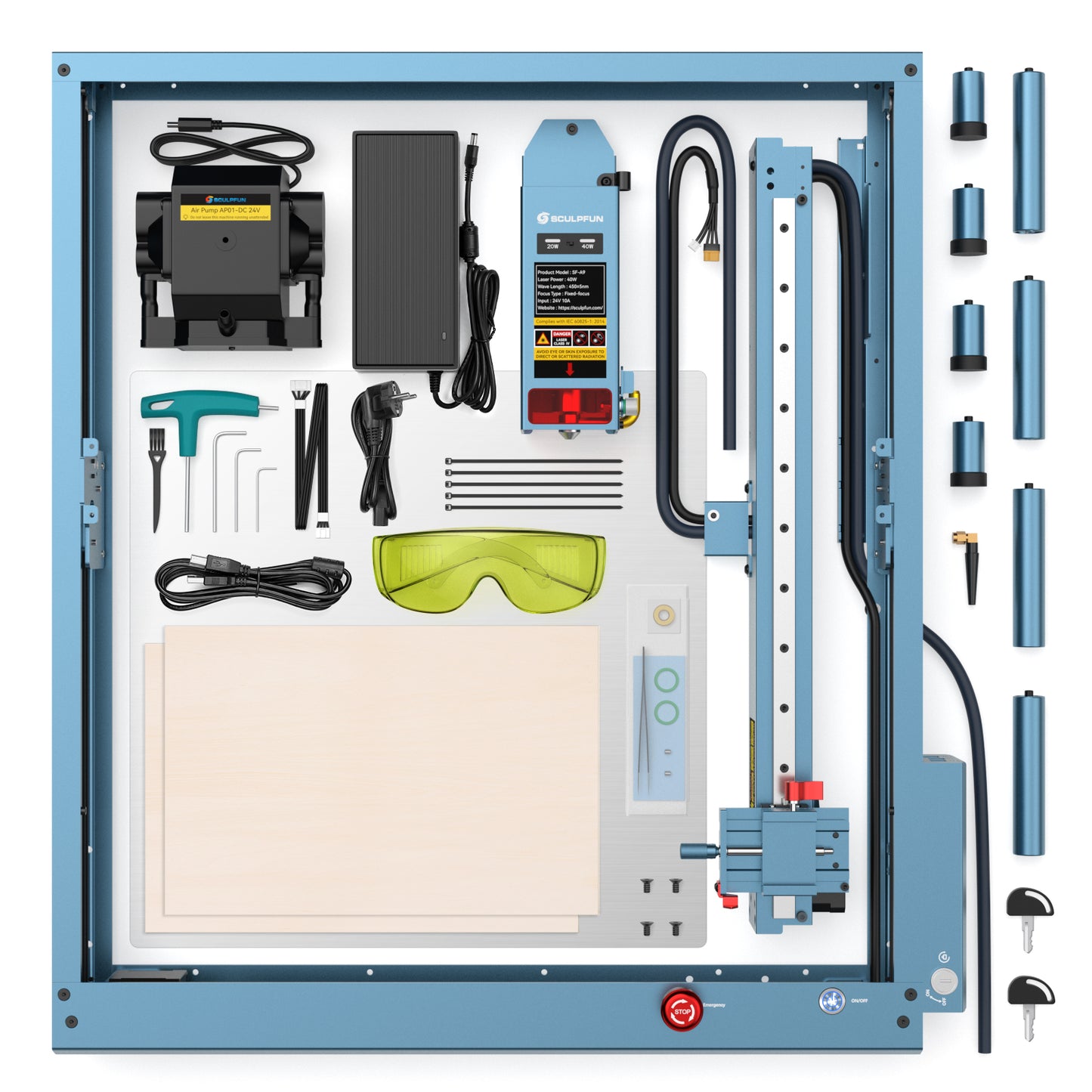

Packing List:
1 x Laser Machine
1 x Laser Head
1 x Adapter
1 x Power Cable
4 x Metal Support Pillar
4 x Spare Metal Support Pillar
1 x Type-C Data Cable
1 x Air Pump
1 x Goggles
1 x Lens Repair Kit
1 x Tool Set
1 x Cable Tie Pack
1 x Antenna Pack
1 x Screw Kit
1 x Aluminium Plate
2 x Basswood Board
2 x Key
Precautions:
●Because of the powerful laser, it is forbidden to run the engraving machine unattended. Please pause it if you're not around.
●Please refer to the user manual for detailed machine instructions and parameter settings.
●When operating the laser engraving machine, please wear goggles.
●Do not touch the laser with your hands, or it may burn your hands.
●Please avoid strong impact on the machine.
●Children under 14 are not allowed to use this product and children over 14 need adult supervision.
●Do not apply the laser directly to any specular reflective objects as this may cause injury to the operator or burn the laser.
