SCULPFUN S30 Pro Laser Module Interchangeable Lens Built-in Air Assist 10W High Density Laser Clean Cutting For Laser Engraving Machine Laser Cutting Machine Wood Acrylic Cutting Tool

Main feature:
1. Built-in high-pressure air-assisted nozzle: S30 Pro is equipped with an advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very clean.
2. Replaceable protective lens: The S30 Pro laser adopts an innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than that of other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, which is very cheap and can be easily purchased from SCULPFUN.
3. Highly compatible design: SCULPFUN laser module has an ingenious and highly compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on various brands of machines, such as SCULPFUN S9/S6pro/S6, ATOMSTACK A5/A5Pro, ORTUR (12V version) laser engraving machine, or other DIY type machines can be used.
4. Ultra-fine and high-density 10W laser shaping technology: The laser power of S30 Pro is increased to 10W, which is twice that of S9. But getting the same 0.08mm focus ultra-fine laser beam as the S9 means that the S30 Pro has higher energy density, stronger cutting penetration and engraving capabilities.
5. Faster, stronger and cleaner: Combining advanced high-speed air assist and 10W high-energy density laser, the S30 Pro reflects industrial-grade wood cutting performance: first, the cutting efficiency is greatly improved, and the cutting is faster; second The cutting penetration is stronger, and many high-density woods can be cut; the third is that the cutting surface is cleaner, and the powerful airflow blows away the residue, so that the surface of the cutting object is free of any stains.

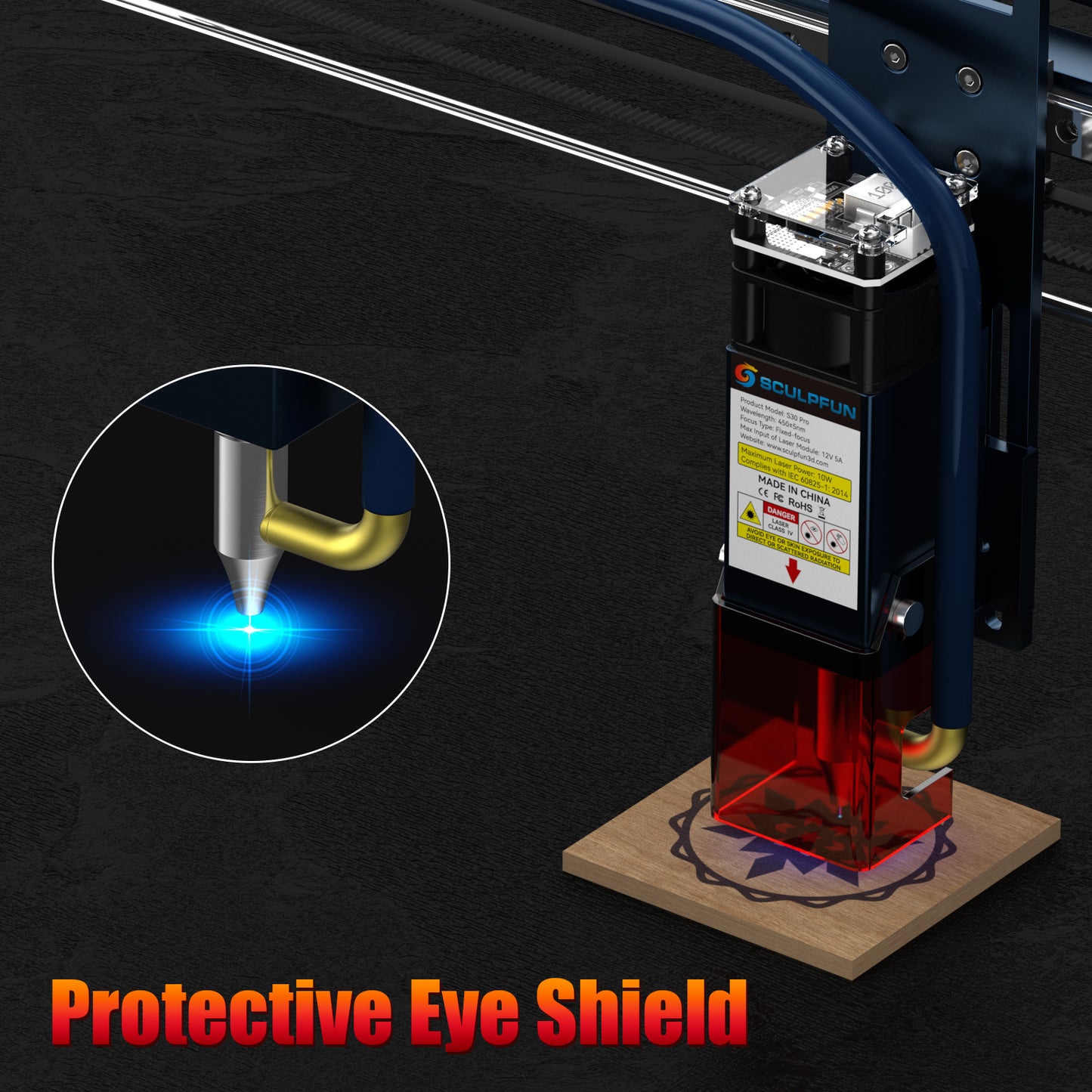

6. Detachable laser eye shield: The S30 Pro is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don't need it, you can easily disassemble it.
7. Universal 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. See product pictures for details.


Product model: SCULPFUN S30 Pro Laser module Set

Applicable machines: laser engraving machines such as SCULPFUN S9/S6pro/S6、ATOMSTACK A5/A5Pro、ORTUR(12V Version), ELEKSMAKER, or DIY 3D printers, CNC machine tools.
How to judge whether the S30 Pro laser is suitable for use? You need to pay attention that the input voltage of the S30 Pro laser is 12V, and the S30 Pro is a 3pin interface, you can check the detailed pictures.


Engraving/cutting materials:
Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards

Laser output power: 10W (light energy)
Inner diameter of air pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm)
Laser wavelength 455±5nm
Laser type and fixed focus: fixed focus laser, fixed focus through 50mm measuring column
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Laser shell material: aluminum alloy

Laser circuit board parameters:
Circuit Board Size: 40*40mm
Circuit Board:12V/PWM modulation board
Input voltage: 12V
Max Input of laser module:12V 5A
Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
Fan:12V 0.15A 4020 fan
Fan speed: 15000 rpm
Operating temperature: -20 ℃ to 70 ℃


Package weight: 0.6kg
Packing size: 305*150*125mm


S30 Pro laser module packing list:
7.5mm inner diameter air tube
acrylic protective cover
S30 Pro Laser head*1
Multi-function connector*1
50mm measuring column*1
Screw and tool kit*1


Note:
●Because of the powerful laser of S30 Pro, it is forbidden to run the engraving machine unattended. Pause it if you're not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult attended.
●Do not use the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
